CA Standard Pneumatic Air Cylinder Accessories Single Earring With Screw

Product Categories
Prius pneumatic Company
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

CA Standard Pneumatic Air Cylinder Accessories Single Earring With Screw

Brand Name : PRIUS,XINYI or OEM

Model Number : CA

Place of Origin : Ningbo,China

MOQ : 5pcs

Price : negotiation

Payment Terms : T/T, L/C, Western Union,Paypal

Supply Ability : 20000pcs per month

Delivery Time : 10~15 working days

Packaging Details : bag+box+catons+pallet

Product Name : CA

name : Air Cylinder Accessories

Working Pressure : 1-9.0Kgf/cm²

Pressure : 13.50Kgf/cm²

Temperature Range : 0-70℃

Speed Range : 50~800mm/s

Contact Now

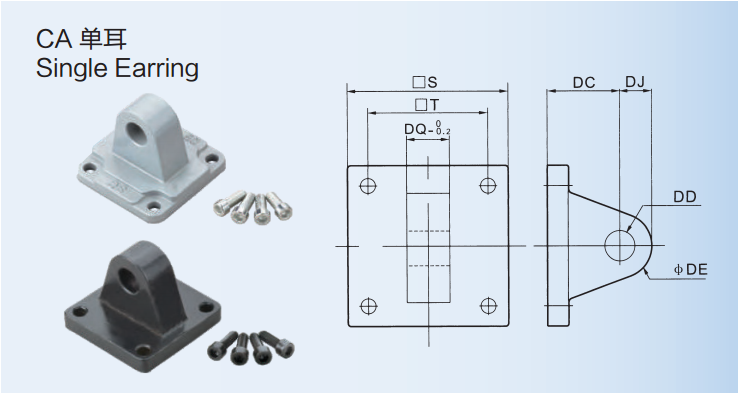

CA Standard Pneumatic Cylinder Accessories Single Earring with Screw

Pneumatic Air cylinder Accessories CA Single Earring,CB Double Earring,LB Foot Bracket,FA/FB Flange,Y Clevis,Eye Fish Bearing,Float Fitting,I Fitting,SDB Earring,Central Turnion,U clevis

Quick Detail:

* Pneumatic air cylinder accessories

* Various asccessories for mounting and functional application

* Covering full range of air cylinder size from Dia.8mm~dia.400mm

* Aluminum material and casting steel material available

* Easy and fast for operatating to mount onto cylinders

* With good shape by the quality surface treatment

* Special air cylinder accessories can be customize for specific application

Applications:

Pneumatic air cylinder accessories are the supporting parts for air cylinder to realize the fixture mounting and functional application joint with air cylinder and workpieces.

Specification

CA From 32-100,we can supply two kinds of materials products:

1.Iron material

2. Aluminium material.When placing order, please indicate product material. From​ 125-200 are all iron material.

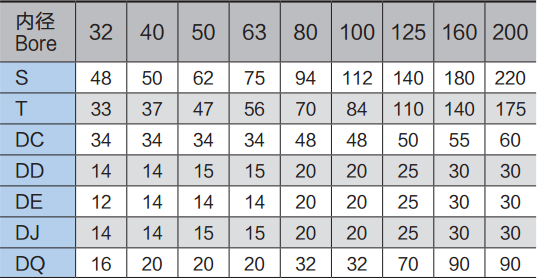

32 40 50 63 80 100 125 160 200
Bore
S 48 50 62 75 94 112 140 180 220
T 33 37 47 56 70 84 110 140 175
DC 34 34 34 34 48 48 50 55 60
DD 14 14 15 15 20 20 25 30 30
DE 12 14 14 14 20 20 25 30 30
DJ 14 14 15 15 20 20 25 30 30
DQ 16 20 20 20 32 32 70 90 90

CA Standard Pneumatic Air Cylinder Accessories Single Earring With ScrewCA Standard Pneumatic Air Cylinder Accessories Single Earring With Screw
